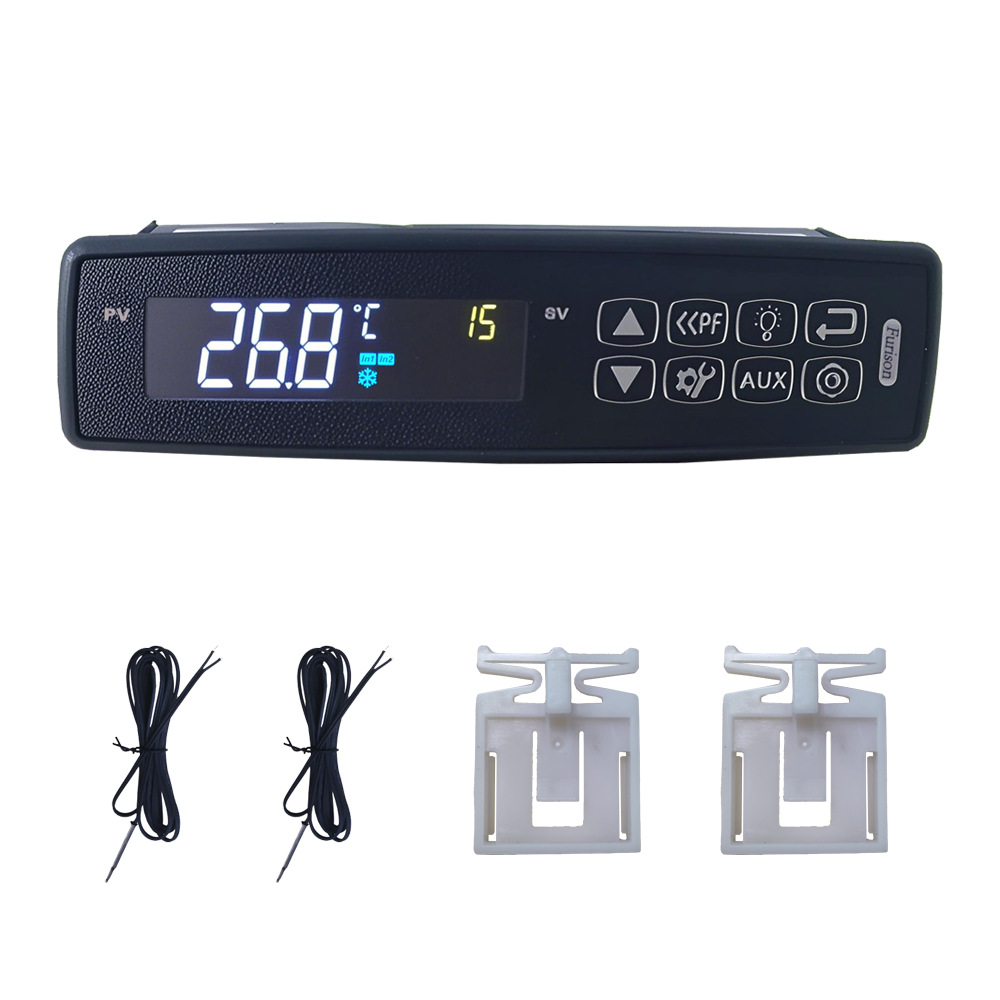

Shell: BAYBLEND PC RF3040
Dimensions: Front 38x185m m, Depth 85mm

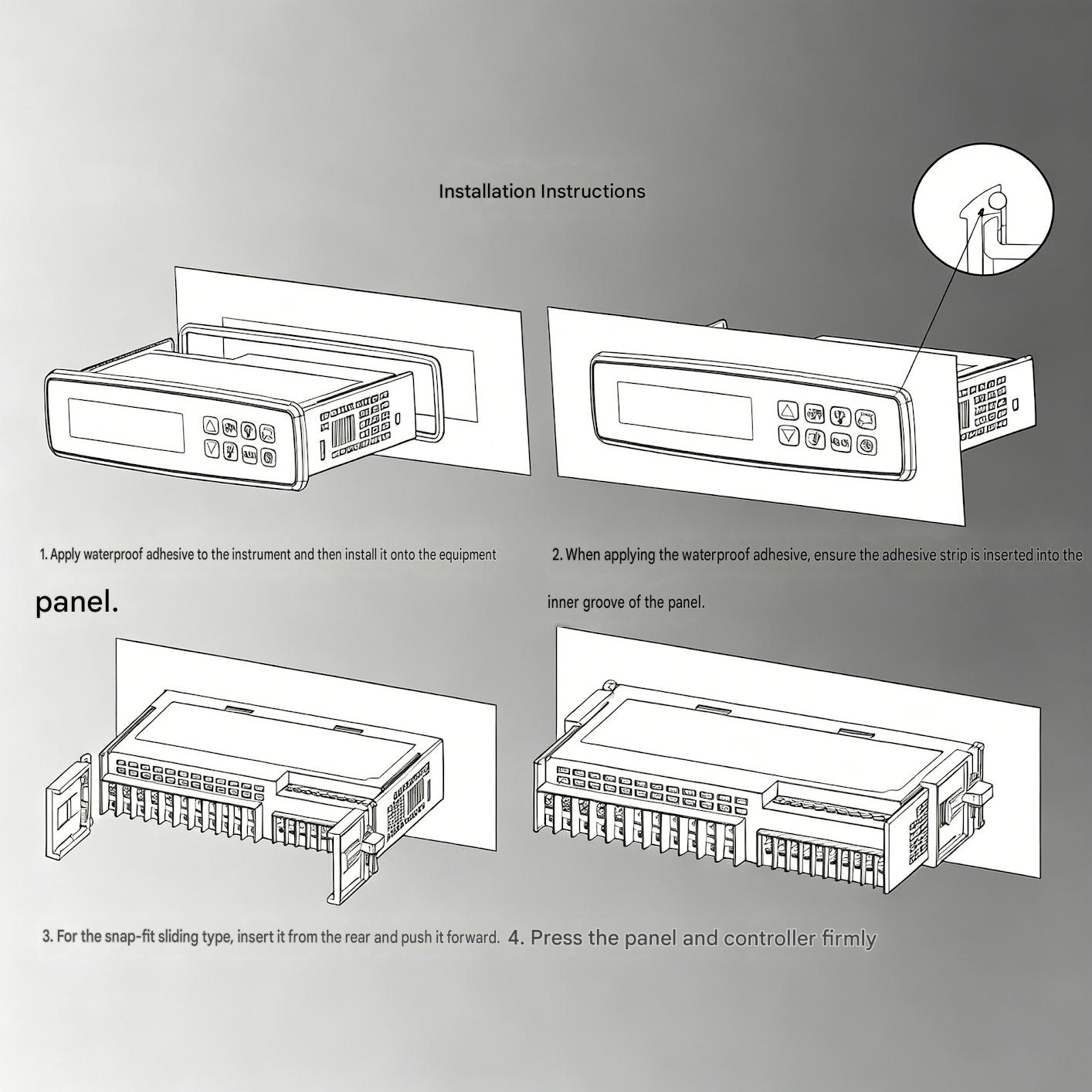

Installation size: fixed on a panel with an opening of 150x31mm
Overall protection level: IP20 Front panel protection level: IP65

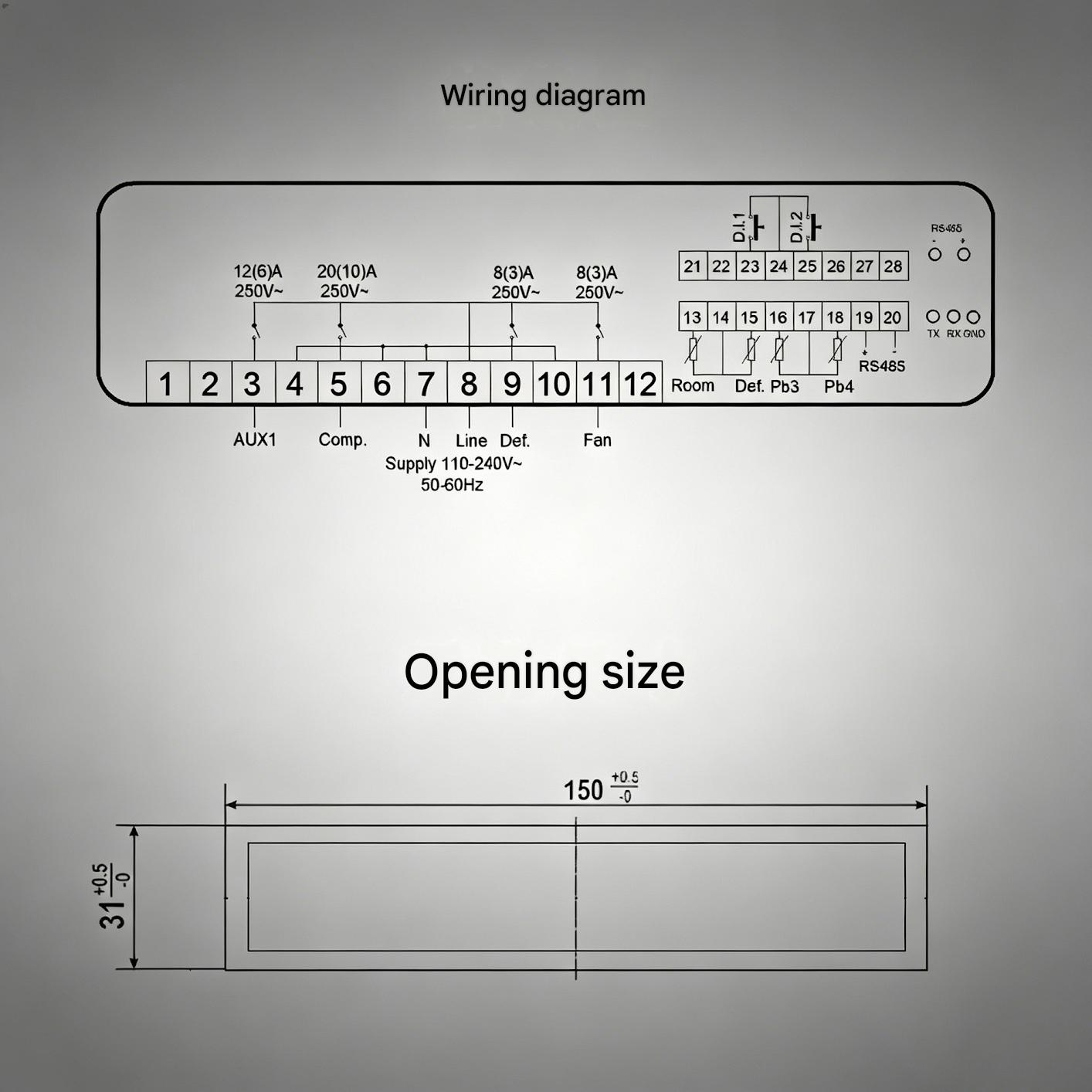

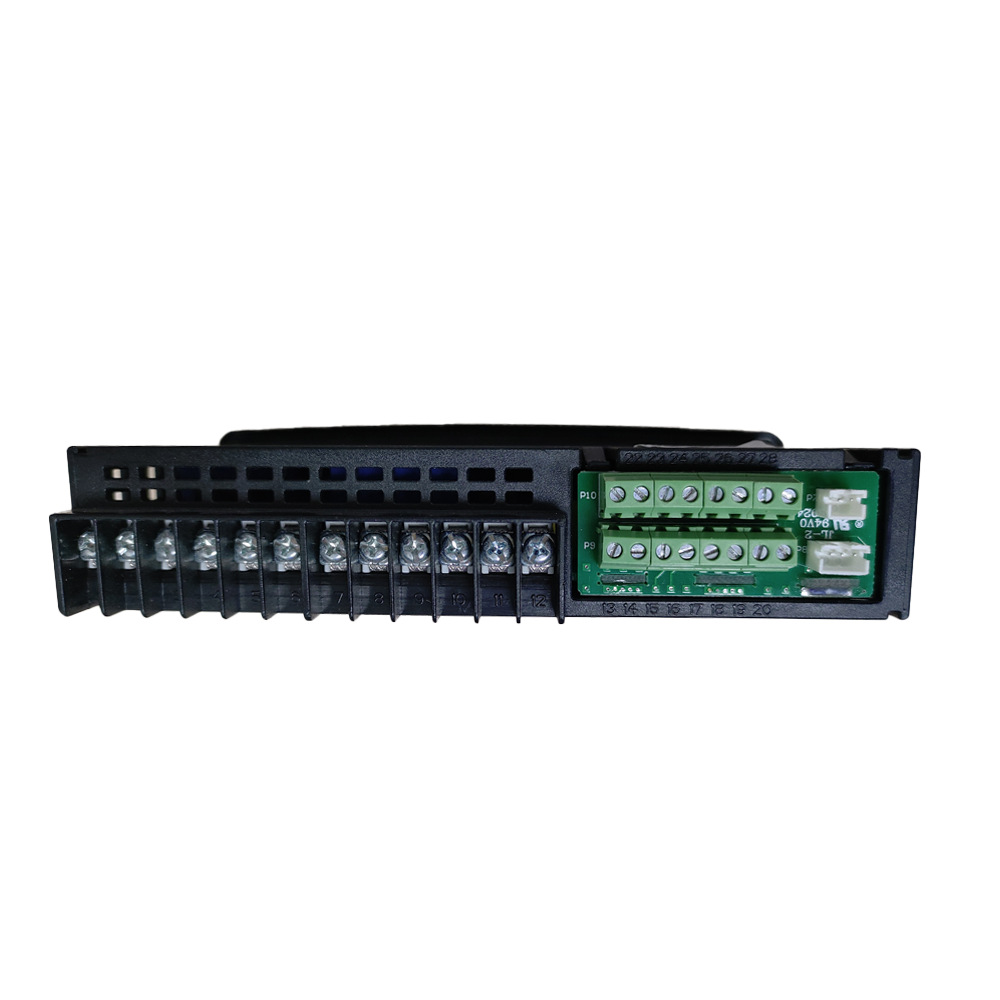

Terminal block: bolted connection, wire diameter<2.5mm ²;
Power supply: 110-240Vac ± 10%, 50/60Hz
Power consumption: 5VA maximum
Display: LCD screen, PV: 4-digit white number, 18.4mm high:
SV: 4-digit yellow number, 9.2mm high
Input: Up to 4 NTC or Pt1000 inputs
Digital input: 2 passive digital inputs
Relay output: The total instantaneous maximum current of the load is 20A
Auxiliary relay: SPST 12 (6) A, 250Vac
Compressor: SPST 20 (10) A, 250Vac
Fan: SPST 8 (3) A, 250vac
Defrosting: SPST 8 (3) A, 250vac
Port: USB
Serial communication port: standard RS485 interface
Communication protocol: Modbus RTU
Data storage: permanent memory (EEPROM)
Measurement and control temperature range: NTC probe: -40~80 ℃ (-40~176F)
PTC probe: -40~80 ℃ (-40~176F)
Resolution: 0.1 ℃, 1 ℃, or 2F (optional):
Accuracy: (standard state, ambient temperature 25 ℃): ± 1 ° C ± 1 ° C.
