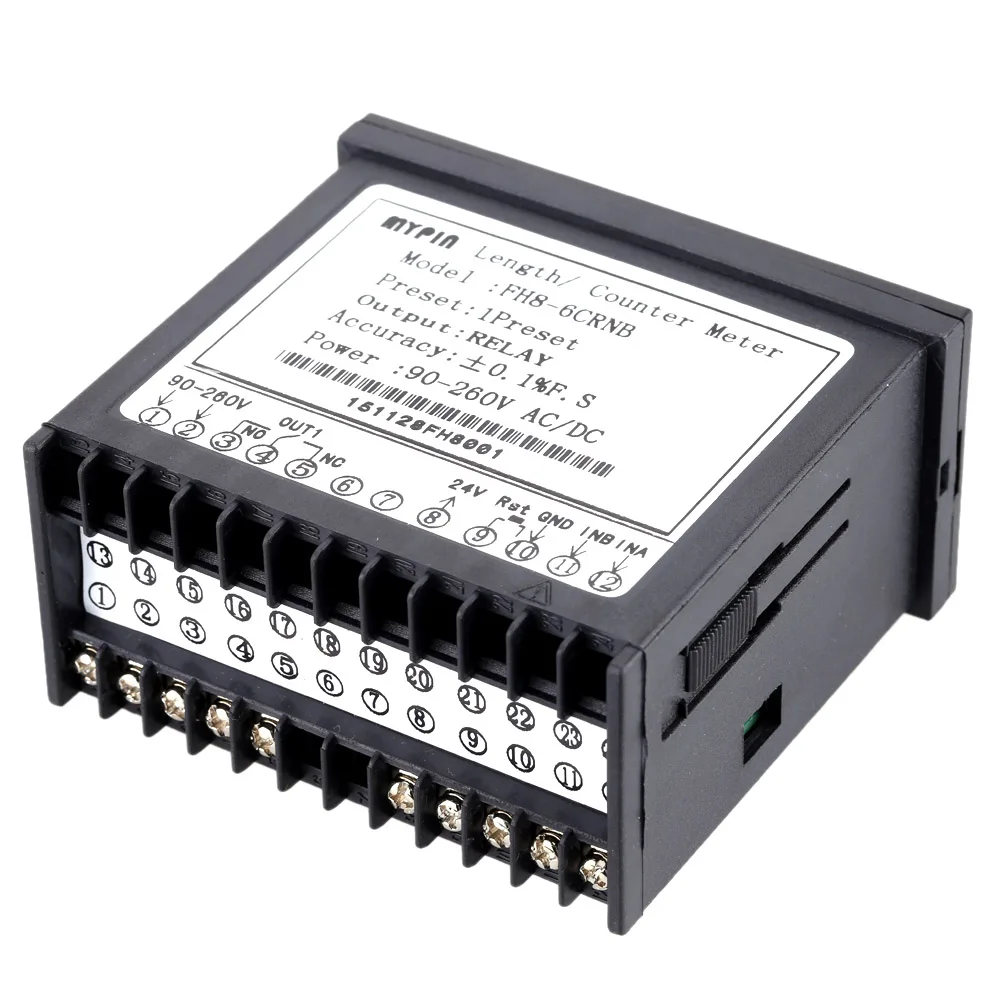

The meter can be used as a counter to count the quantity of objects in a single batch and the number of batches, and also can be used as length meter. It is widely applied in chemical, machine, light industry, etc.
Features:
The meter can be used as a counter to count the quantity of objects in a single batch and the number of batches, and also can be used as length meter.
It can be connected with encoder, length counting wheel, proximity switch, photoelectric switch, optical sensor, laser sensor, capacitive switch, etc.
4 kinds of input mode, 6 kinds of output mode for option.
Input and output is optical isolated.
It can be set alarm value.
6 digits LED Display.
Widely applied in chemical, machine, light industry, etc.
Specifications:
Input: Pulse Signal: Square Wave and Sine Wave: 4<=H<=30V 0<=L<=2V rising edge active
Input Impedance: >=10KΩ
Counting Speed: 30/5000CPS
Counting Range: -199999~999999
Preset Range: 0.00001-999999
Output: 1 Relay Output
Power Supply: 90~260V AC/DC
Auxiliary Power: 24V DC
Operating Temperature: 0-50°C
Item Size: 9.5 * 4.7 * 8.5cm / 3.7 * 1.8 * 3.3in
Item Weight: 160g / 5.7oz
Package Size: 11 * 5.5 * 10cm / 4.3 * 2.2 * 3.9in
Package Weight: 196g / 6.9oz
Package List:
1 * Counter
2 * Bracket
1 * User Manual(English)
