| Model Number |
PTD602 |
Probe Temperature Range |
PT100: -200°C~+600°C;
PT1000: -50°C~+300°C |
| Temperature Accuracy |
± (0.15%+0.002* ItI )C |
| Temperature Resolution |
0.1℃ |
| Teperature Unit |
℃/℉/K |
| Storage Temperature |
-20℃~60℃ (without battery) |
| Operation Temperature |
-10℃~50℃ |
| Memory Capacity |
61440 points of data |
| Measurement Rate |
1 time per second |
| Log Sample Rate Interval |
1~65535 seconds (adjustable) |
| Battery |
3 pieces of 1.5V AA battery |
| Waterproof Level |
IP52 |

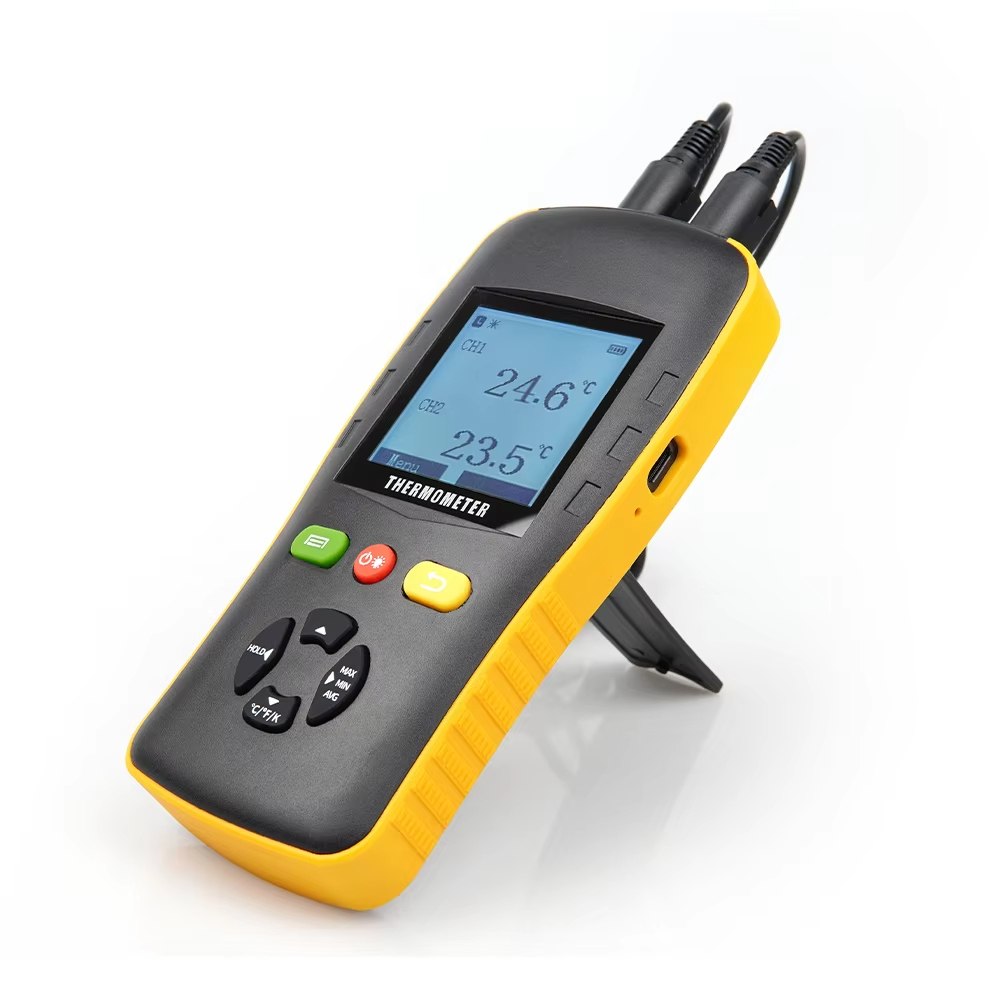

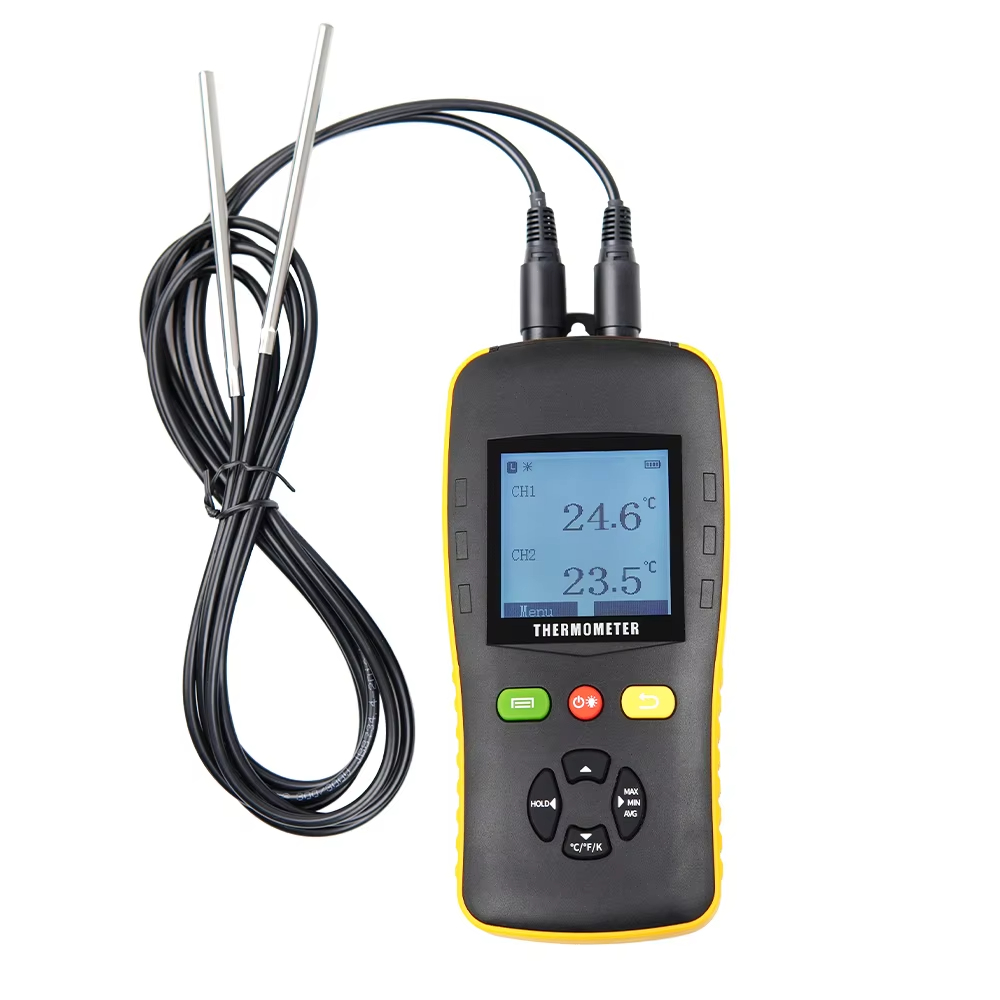

PTD602 Thermometer
PTD602 is one kind of data logging thermometer with two input. It can be used to measure contact temperature on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard PT100 or PT1000 temperature sensors. The user friendly-front panel and large, backlit display make it easy to view results.
Below are the features of Industrial Universal 2 Channel RTD PT100 Temperature Thermocouple Thermometer With LCD Display

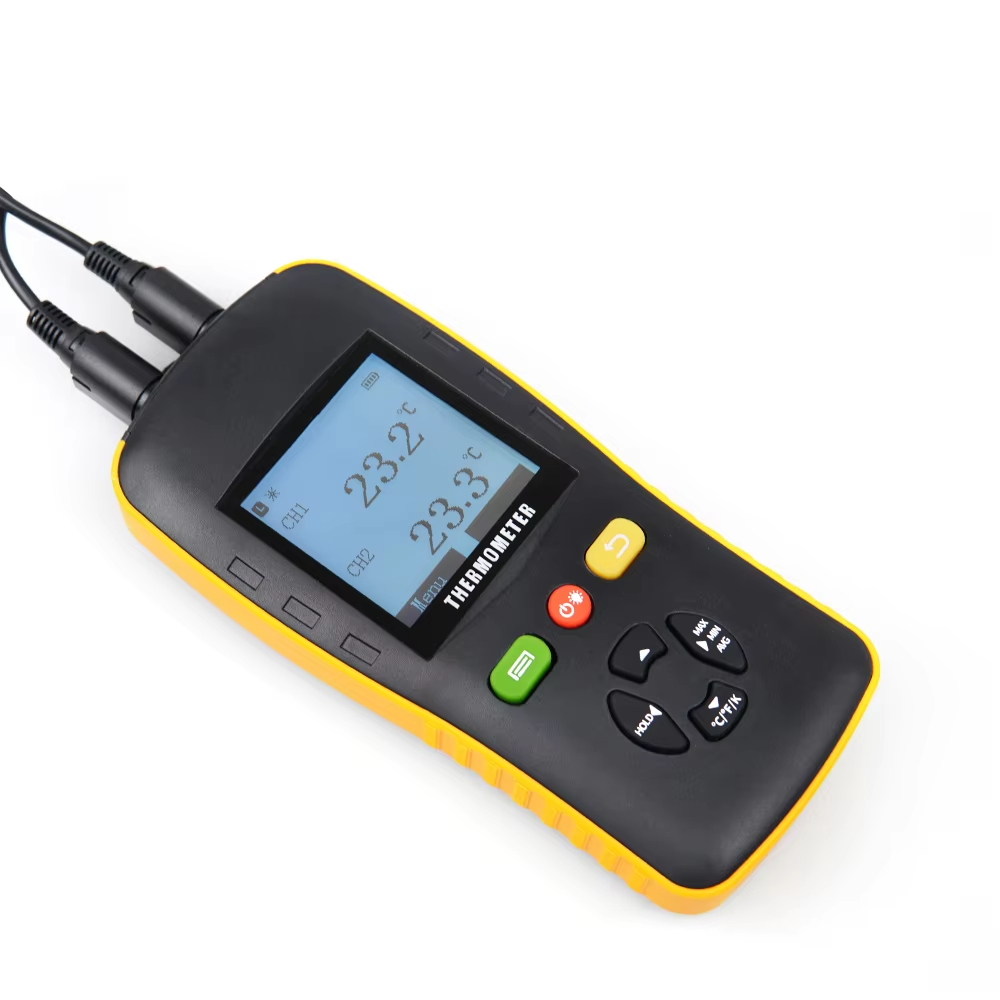

* Large backlit display shows any combination of T1, T2, plus MIN, MAX, or AVG
* Automatically generate data report via USB connection to PC, supporting TXT, CSV, XLS, PDF four formats
* Data Logging up to 61440 points of data with user adjustable recording interval
* Compatible with two types of probe sensors, PT100 and PT1000 * Readout in °C, °F, or Kelvin (K) * User-friendly front panel is easy to set up and operate * Sleep mode increases battery life
* Wide measuring range, good linearity, high accuracy and long life
