3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603
  • 3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603

3-in-1 Digital Lux Meter Light & Illuminance Meter Tester 200000 Photometer Luxometro Luxmeter TL-603

Item No.: TL-603
INQUIRY

Features:

1.Light,temperature and humdity measurement

2.Lux and Fc unit switchable

3.Celsius and Fahrenheit switchable

4.Large LCD with Backlight

5.Max,Min and data hold Function

7.Detachable Sensor

8.Time and date display

9..Low Power Consumption

10.Auto power off (after 5minutes) and Disable sleep mode



Specifications:

Light measure range: 0.1 to 400,000 Lux(Fc switchable)

Accuracy:±4%(0.1 to 10,000Lux);±10% above 10,000Lux

Resolution:1 Lux/0.1FC

Sampling:0.5sec

Temperature range:-10~50oC(14 to 122oF)

Accuracy:±1oC/±1oF

Humidity range:20%~90%RH

Accuracy:±5%

Operation temperature:0 to 50oC(32 to 122oF)

Operation humidity:10 to 90%RH

Storage temperature: -10 to 60oC(14 to 140oF)

Storage humidity:10 to 75%RH

Power supply: 4.5V (3pcs AAA Size 1.5V battery)

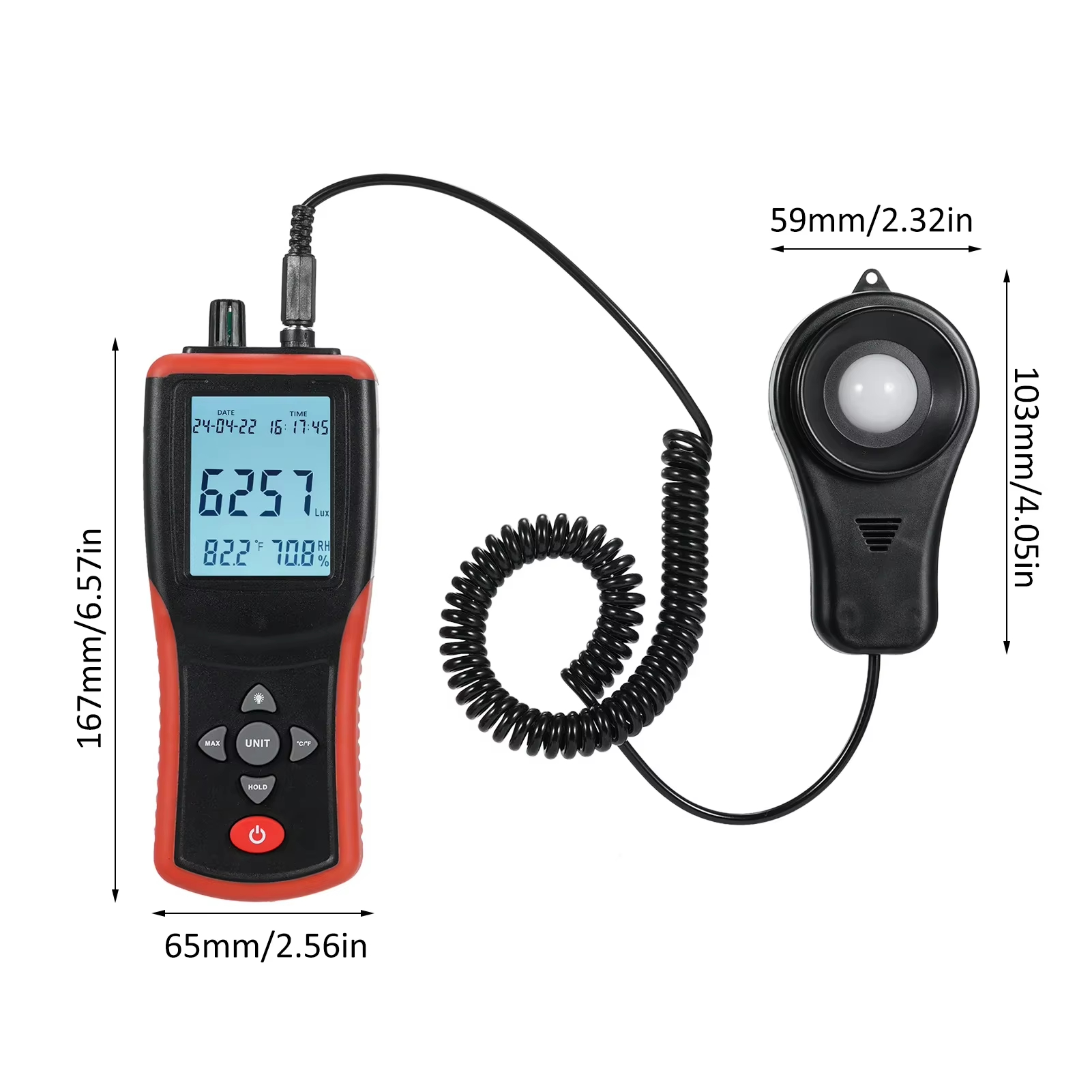

Size:270*70*35mm

Weight:250g(included battery)

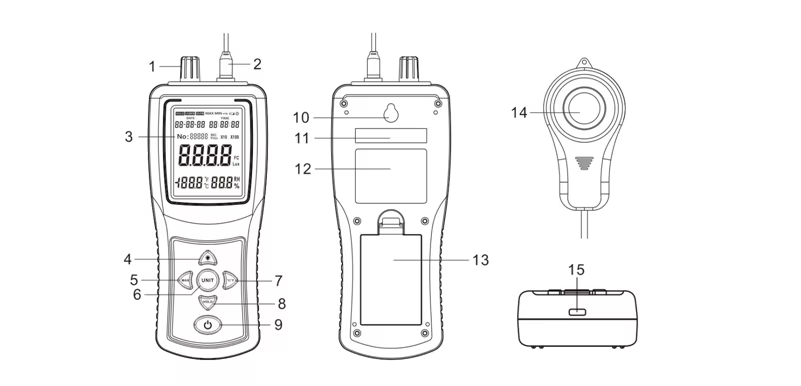

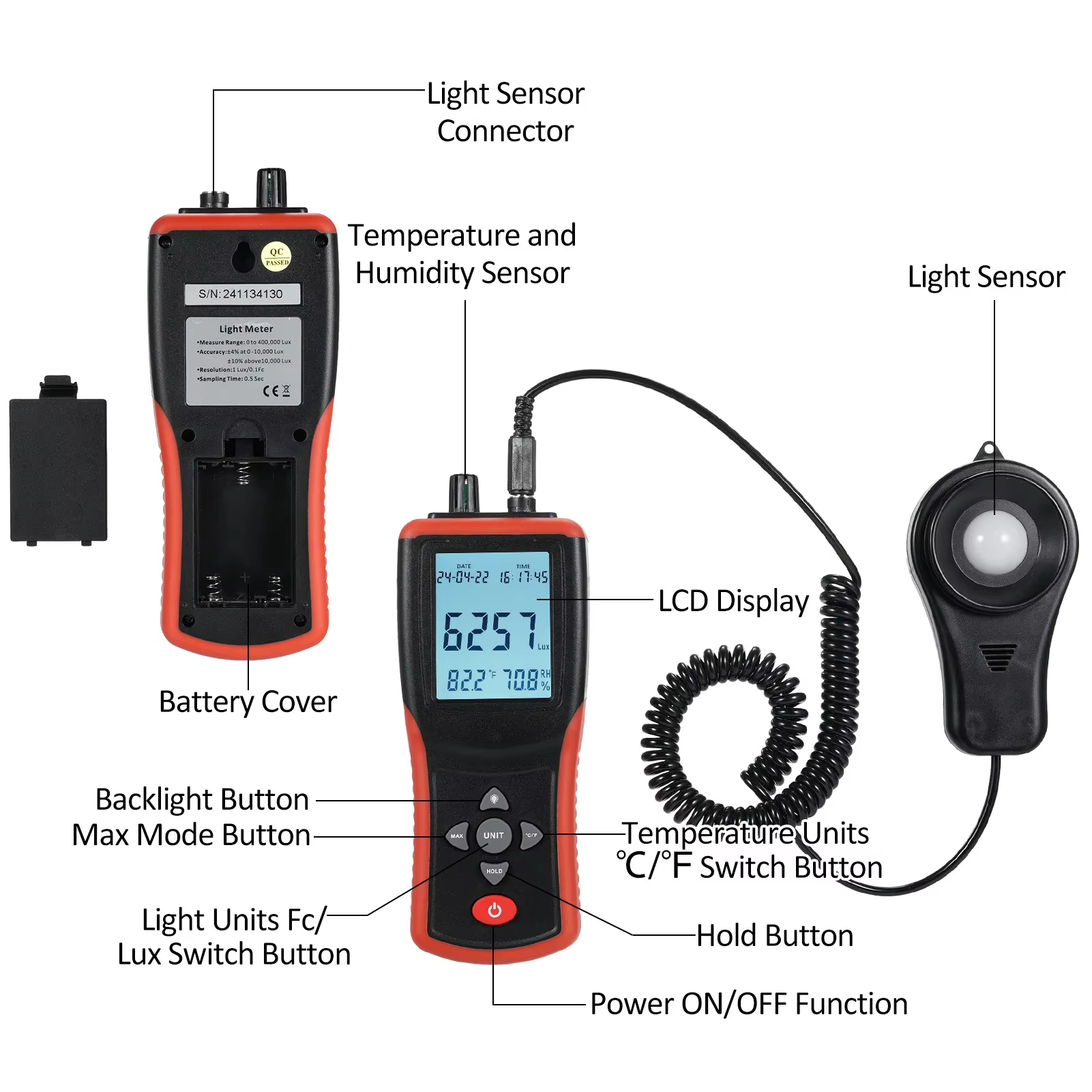

1.Temperature and humidity sensor

2.Light sensor connector

3.LCD display

4.Backlight button

5.Max mode button

6.Light units Fc/Lux switch button

7.Temperature units oC/oF switch button

8.Hold button

9.Power on/off function

10.Wall-mounted

11.Serial number sticker

12.Product specifications sticker

13.Battery Cover

14.Light sensor

15.USB socket(use for power adapter)

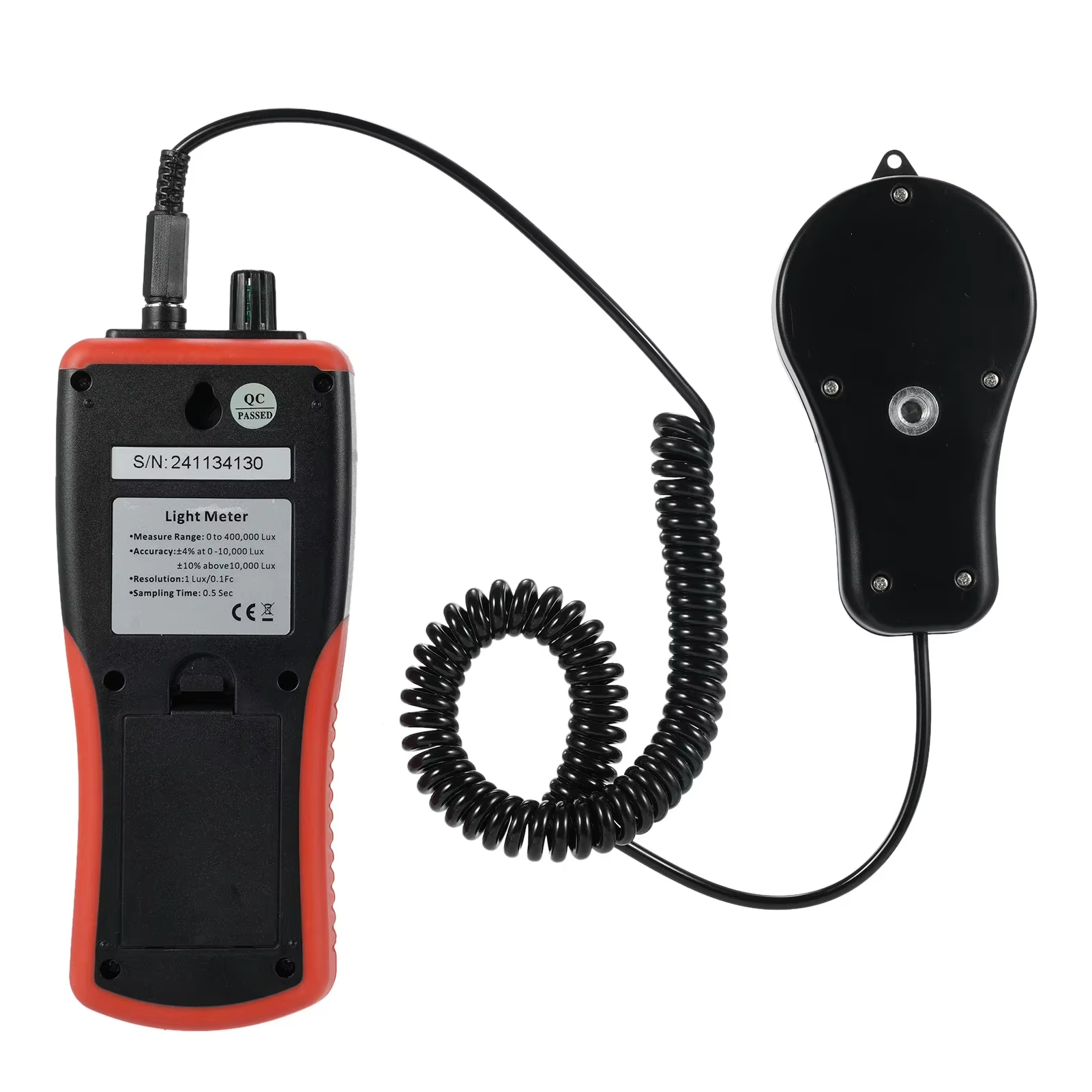

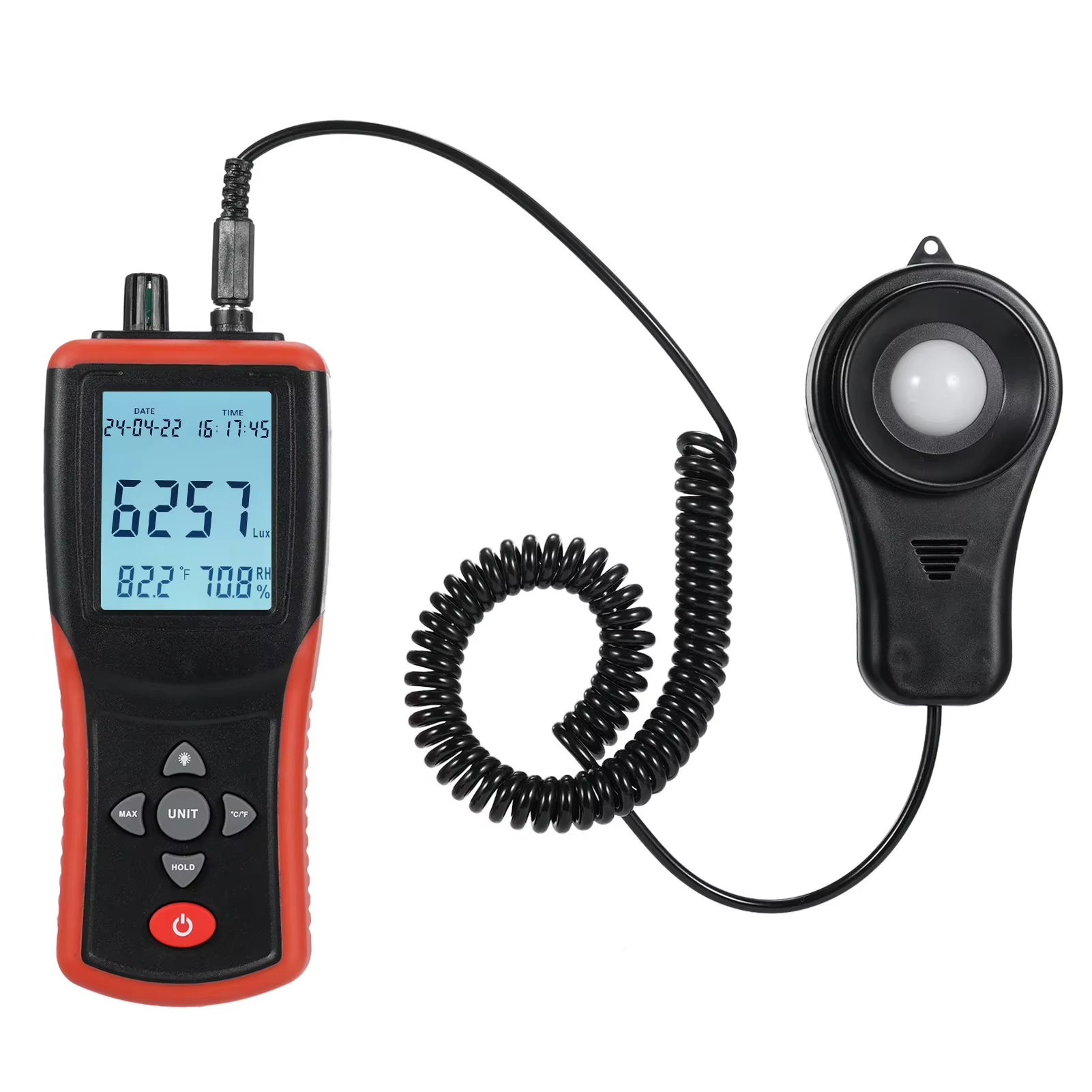

Photos:
