This Portable Digital Lux Meter with PC Interface can measure up to 200,000 lux. It is used for checking the level of luminance, the measure of the amount of light falling on a given surface. It applied in the fields of cinematography and scenic design, in order to determine the optimum light level for a scene, where they can help to reduce the amount of waste light used in the home, light pollution outdoors, and plant growing to ensure proper light levels.
Features:
l Light measurement with auto ranging
l Large Display with backlight
l Lux and Fc switchable
l Data hold function
l Min/Max/Avg function
l Detachable sensor
l Time and date switch and setting function
l Low power indicator
l Bar graph display
l Tripod Mount (Tripod not included)
Specifications:
Measure Range: 0.1 to 200,000 Lux (Fc switchable)
Accuracy:+4%(0.1-10000Lux);+10% above 10000Lux
Resolution:1 Lux/0.1Fc
Sampling Time: 0.5 Second
Operation temperature:0 to 50oC(32 to 122oF)
Operation humidity:10 to 90%RH
Storage temperature: -10 to 60oC(14 to 140oF)
Storage humidity:10 to 75%RH
Size:240*65*35mm(with 1 meter extendeddetachable sensor)
Weight:290g(battery included)

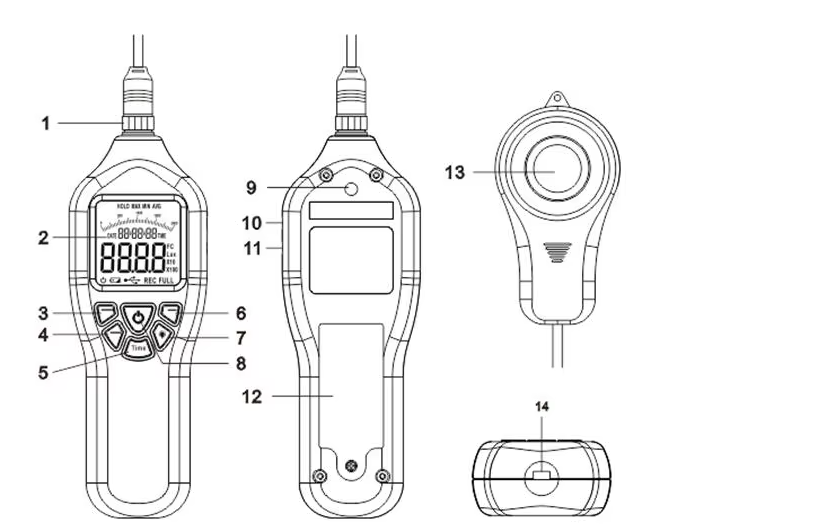

1.Light sensor connector
2.LCD display
3.Hold button
4.Max button
5.Time/Date button
6.Fc/Lux button
7.Backlight button
8.Power button
9.Tripod mounting thread
10.AC output socket (for output)
11.DC output socket (for output)
12.Battery cover
13.Light sensor
14.USB sorket(for power supply)

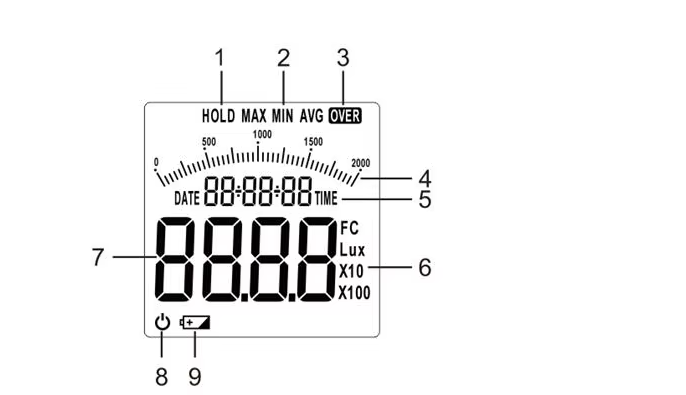

LCD display
1.Hold mode symbol
2.Max/Min/Avg reading mode symbol
3.Over range indicator
4.Bar graph display
5.Time and Date display
6.Light units
7.Digital readout
8.Power symbol
9.Low battery indicator
10.USB connect symbol

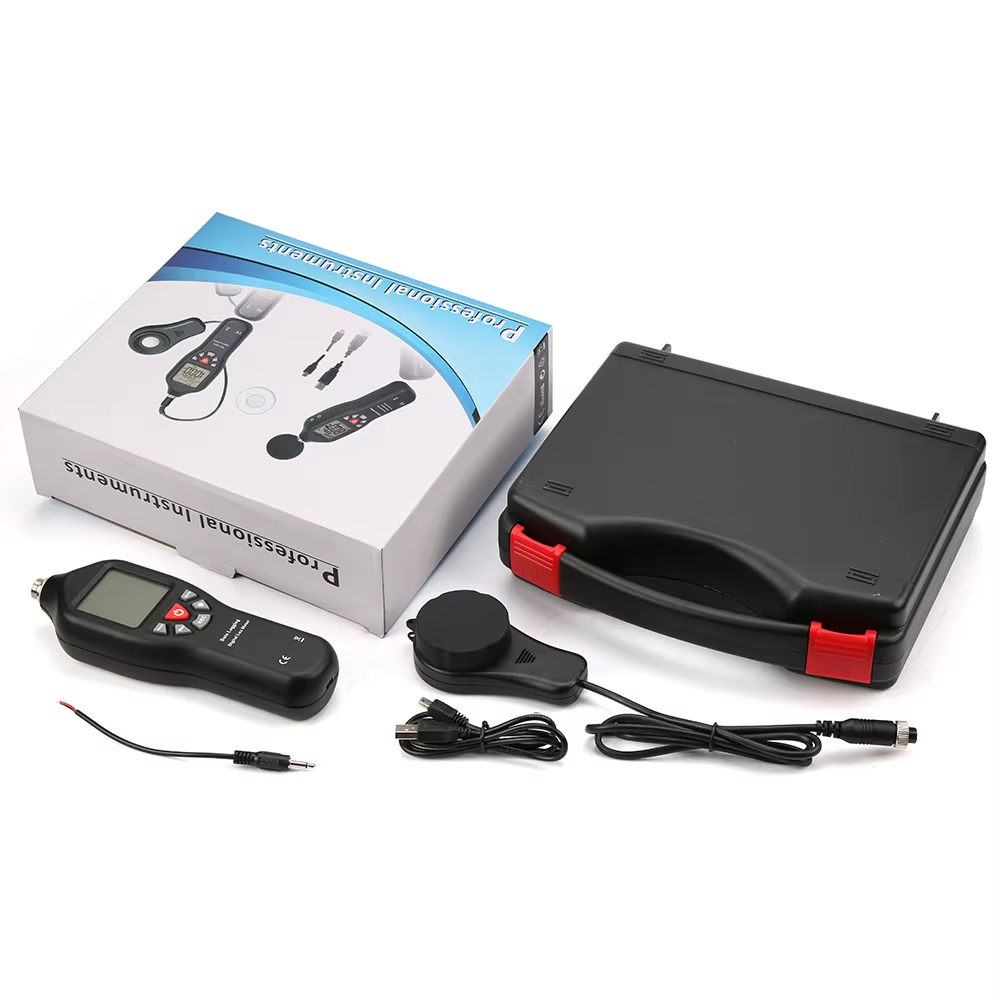

Set Includes:
